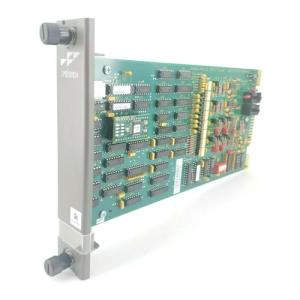

IMDSM04 ABB Bailey Infi 90 Symphony Pulse Input Slave Module PLC Spare Parts
Product Details:
| Brand Name | ABB |
| Model | IMDSI14 |
| Product ID | N/M |
| Condition | New |
| Gross Weight | 2.2 lbs / 35.2 oz / 1kg |
| Packing Size | 7" x 7" x 4" (18 cm x 18 cm x 10 cm) |
| Country of Origin | Estonia |
| Lead Time | In Stock |
| Shipping Port | Xiamen |
| Payment | T/T |
| Sales Price | Inquiry |
| Color | Depends on material |
| Warranty | 12 months |
| Lead time | 5-8 work days |
| Courier partners | DHL, UPS, TNT, FedEx and EMS |
Additional Information:
| Model | IMDSI14 |
| Power Supply Voltages: Current Consumption: | ± 5 VDC Logic Supply ± 5% ± 24 VDC I/O Supply + 12%, -10% 5 VDC 1.4 Amps typical, 1.5 Amps maximum 24 VDC 62 mA typical, 70 mA maximum |
| Inputs Input Voltages: Max. Input Signal Current at Max. Input Voltage: Logic 1 Input Voltages: Logic 0 Input Voltages: | Range 1, 5 VDC Supply: 4.0 VDC to 6.0 VDC Range 2, 24 VDC Supply: 21.6 VDC to 27.0 VDC Range 3, Preamplifiers: 50 mV (peak to peak) to 10 V (peak to peak) Range 1: 14.8 mA at 6 VDC Range 2: 8.4 mA at 24 VDC Range 3: 0.4 mA at 10 V (peak to peak)
Range 1: 4 VDC minimum, 6 VDC maximum
Range 2: 21.6 VDC minimum, 27 VDC maximum Range 3: 25.0 mV peak minimum, 5 V peak maximum
Range 1: 0 V minimum, 1.0 V maximum
Range 2: 0 V minimum, 2.0 V maximum Range 3: -5 V peak in., -25.0 mV peak maximum |
Debounce Times
| ON time 8.5 milliseconds (typical) OFF time 8.5 milliseconds (typical) |
| Input Signal Frequency Limit | Upper frequency limit for using debounce: 40Hz |
| Mode Accuracy | Totalize: ± 0 Counts Frequency Count: ± 1 Count Period Determination: ± 1 Count |
| Maximum Input Frequency | 50 kHz (at 50% duty cycle) |
| Timebase Accuracy | ±0.033% |
| Isolation Voltage | 150 V RMS channel to channel 350 V RMS inputs to logic |
| Surge Withstand | Meets requirements of IEEE Surge Capability Standard 472-1974, on all debounced inputs NOTE: If you select a preamplifier for a channel, the counter associated with that channel may increment during surge pulsing |
| Mounting | Uses 1 slot in Infi 90 Module Mounting Unit. |
| Certification | CSA certified as process control equipment in an ordinary (non-hazardous) location. |
Description:
The Pulse Input Slave Module (IMDSM04) is an interface used to bring eight separate process field signals into the Infi 90 process management system. These pulse inputs are used by master modules to monitor and control a process.
The Pulse Input Slave Module (IMDSM04) brings eight separate pulse signals into the Infi 90 system for processing and monitoring. It interfaces process field inputs with the Infi 90 Process Management System. Master modules provide the control functions; slave modules provide I/O to the master modules.
